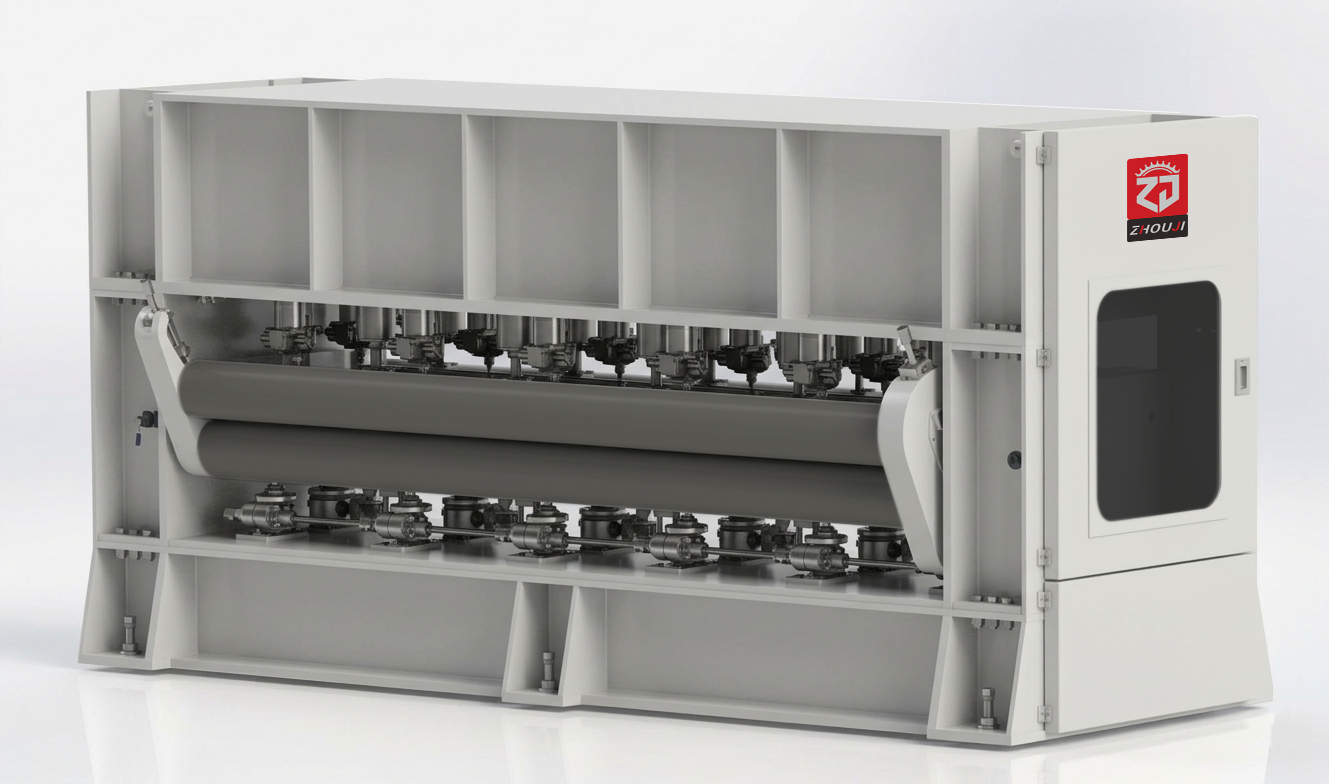

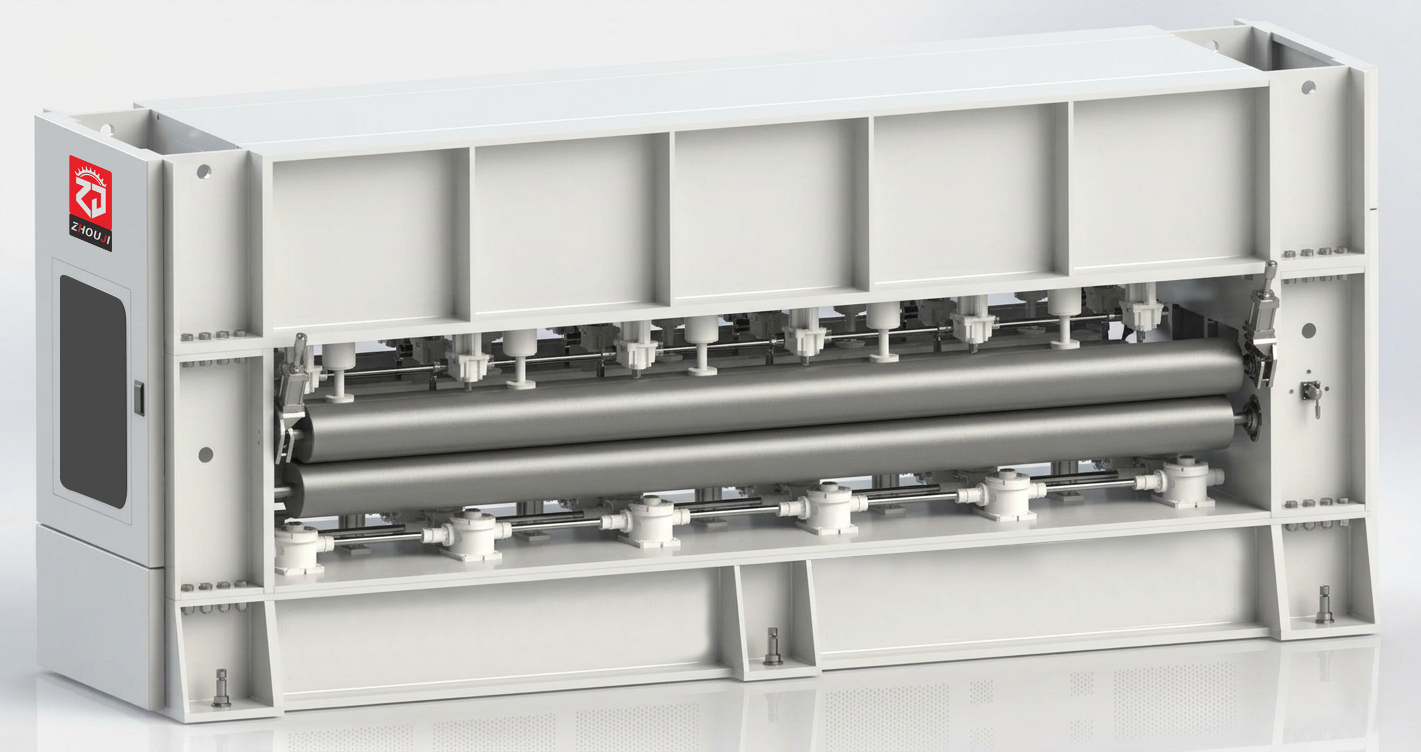

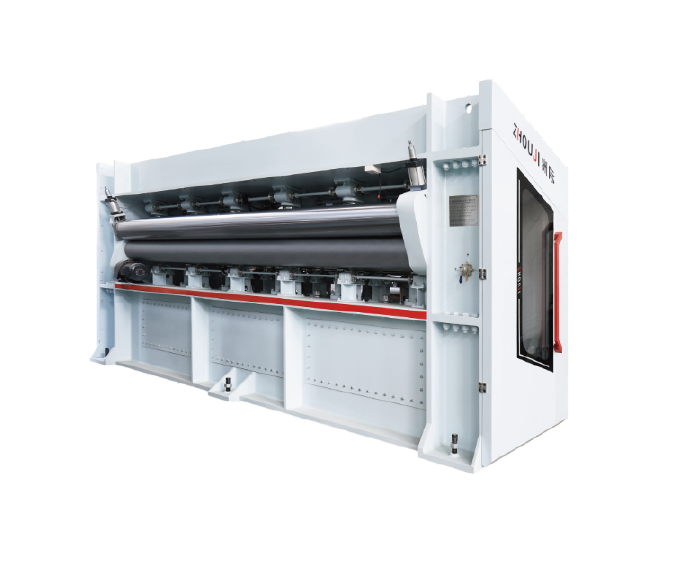

High-Speed Double Board Needle Loom for Nonwoven Production
The ZHOU JI High-Speed Double Board Needle Loom uses one main motor to drive two transmission shafts and two needling mechanisms. Its two working zones support continuous high-speed needle punching for higher-throughput nonwoven production across working widths up to 8.5 m.
High-Speed Double Board Needle Loom Overview
Two Working Zones
Two needling mechanisms provide two working zones for continuous reinforcement.
High-Speed Needling
Specified needle frequency reaches up to 1500 r/min.
Wide Working Width
Available working width extends from 2.5 to 8.5 m.
Key Features
Two Transmission Options
Available structures include through-shaft with eccentric wheel or crankshaft with coupling.
Large-Box Circulating Lubrication
The machine uses an integrated circulating oil lubrication system.
One-Piece Aluminum Needle Beam
The integrated needle beam helps maintain consistent needle depth.
Double Working Zones
Two needling mechanisms support continuous, efficient needle punching.
Suitable Fibers & Applications
The machine is intended for formed nonwoven webs requiring high-speed needle reinforcement.
Suitable Fibers
- Configuration should be matched to product width, required needling intensity and downstream finishing.
Typical Applications
- Wide-width nonwoven materials
- Geotextile
- Automotive nonwovens
- Filter felt
- Needle punched carpet
- Industrial needle punched materials
High-Speed Double Board Needle Loom Production Process
The highlighted stage shows where the High-Speed Double Board Needle Loom is used within the nonwoven production process. The exact upstream and downstream equipment depends on the finished product and line configuration.
One main motor drives two transmission shafts and two needling mechanisms. The two working zones needle the nonwoven web continuously, supporting efficient reinforcement at high operating frequency.
Technical Specifications
Specifications are based on the supplied product document. Final machine configuration should be confirmed according to the production process and product requirements.
Double Board vs. Single Board Needle Loom
The two machines perform different functions within nonwoven production. The comparison below shows their main process differences.
Used in Complete Nonwoven Production Lines
Why Choose ZHOU JI High-Speed Double Board Needle Loom?
Two Working Zones
Supports continuous needle reinforcement through two mechanisms.
Wide-Width Production
Specified working width reaches 8.5 m.
High Needle Frequency
Specified frequency reaches 1500 r/min.
Transmission Options
Two transmission structures are available according to configuration.
High-Speed Double Board Needle Loom FAQs
It is a needle punching machine with two needling mechanisms and two working zones for continuous nonwoven reinforcement.
The supplied specification gives a maximum of 8.5 m.
Up to 1500 r/min.
30 to 40 mm.
The Double Board Needle Loom has two needling mechanisms and two working zones, while the Single Board Needle Loom uses one needle board.
