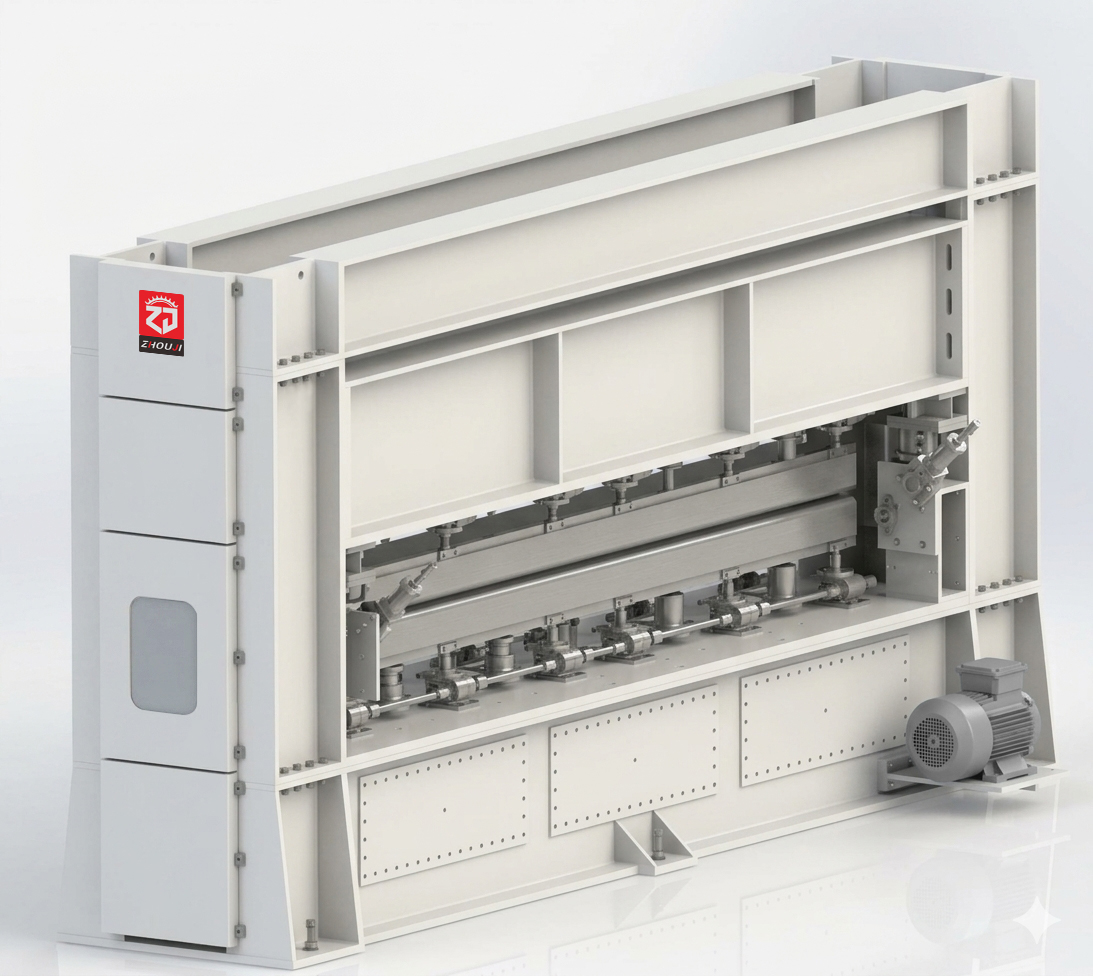

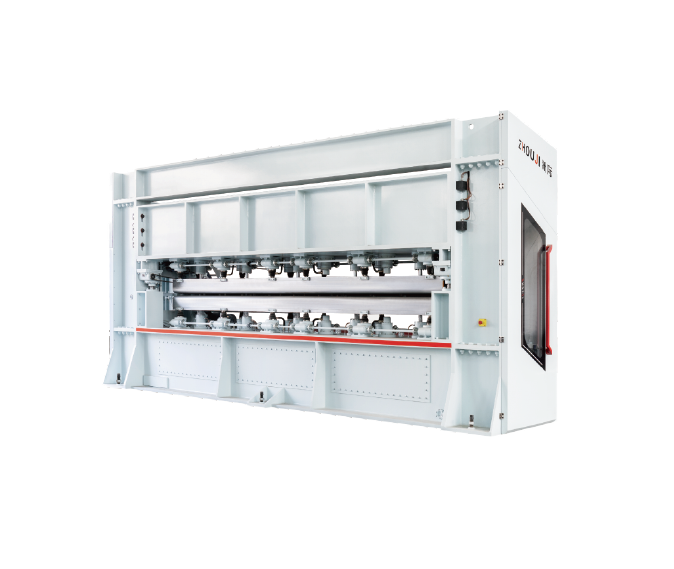

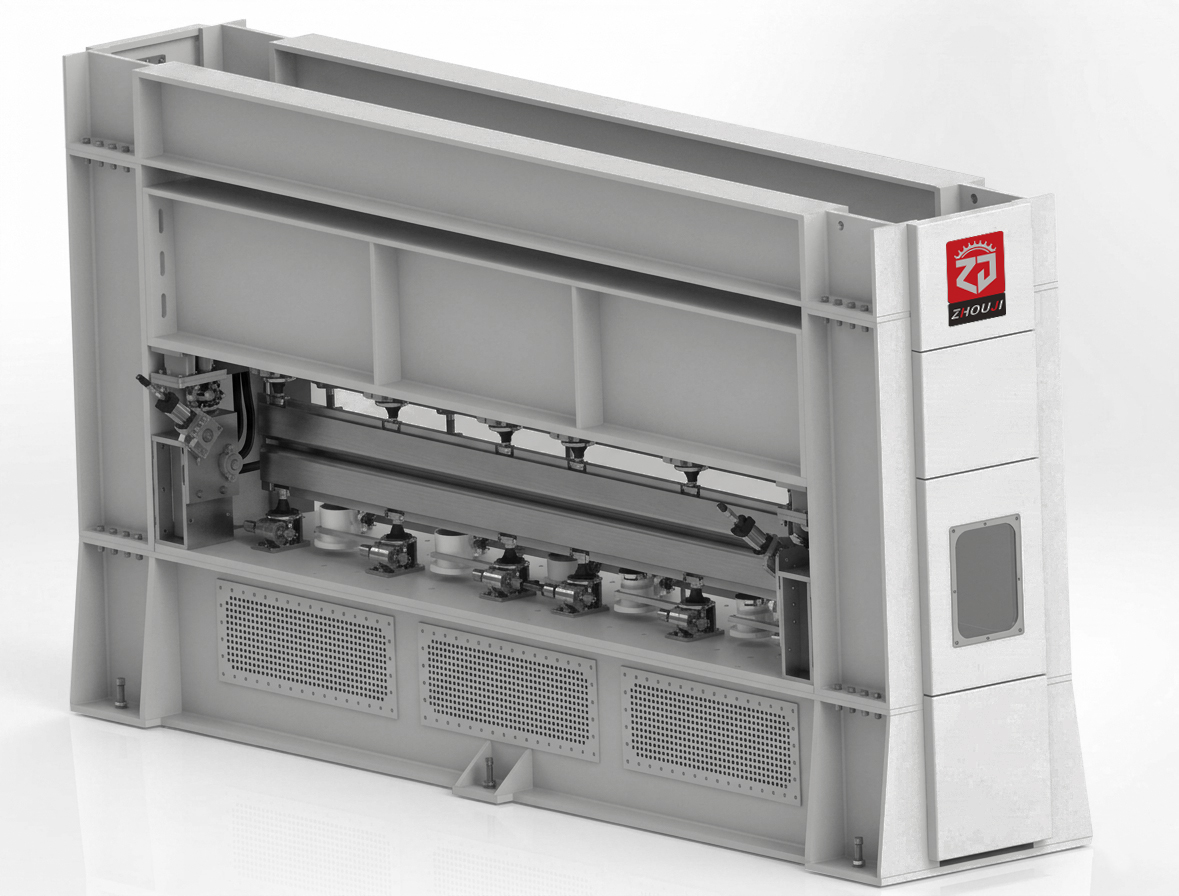

Tandem Needle Loom for Nonwoven Production
The ZHOU JI Tandem Needle Loom reinforces nonwoven material from both sides, improving needling efficiency while reducing the floor space required for separate needling stages. It can be configured for pre-needling, main needling or surface finishing applications.
Tandem Needle Loom Overview
Double-Sided Reinforcement
Needles the nonwoven from both sides to improve reinforcement efficiency.
Flexible Needling Stage
Suitable for pre-needling, main needling or surface finishing.
Two- or Four-Board Options
The machine can be configured with two or four needle boards.
Key Features
Two- or Four-Board Configuration
Needle-board configuration can be selected according to the needling requirement.
Large-Box Machine Structure
The machine uses a large-box structure with a circulating oil lubrication system.
High Stroke Frequency
The drive is designed for high-frequency needling with effective heat dissipation.
One-Piece Aluminum Needle Beam
The integrated aluminum needle beam helps maintain consistent needle penetration depth.
Suitable Fibers & Applications
The Tandem Needle Loom processes formed nonwoven fiber webs or batts.
Suitable Fibers
- Final needle-board arrangement and needling stage should be selected according to the finished material and reinforcement requirement.
Typical Applications
- Pre-needling
- Main needling
- Surface needling
- Geotextile
- Automotive nonwovens
- Filter felt
- Needle punched carpet
Tandem Needle Loom Production Process
The highlighted stage shows where the Tandem Needle Loom is used within the nonwoven production process. The exact upstream and downstream equipment depends on the finished product and line configuration.
The formed nonwoven web passes through the tandem needling section and is reinforced from both sides. Depending on configuration, the machine can be used at the pre-needling, main-needling or surface-finishing stage.
Technical Specifications
Specifications are based on the supplied product document. Final machine configuration should be confirmed according to the production process and product requirements.
Tandem Needle Loom vs. Single Board Needle Loom
The two machines perform different functions within nonwoven production. The comparison below shows their main process differences.
Used in Complete Nonwoven Production Lines
Why Choose ZHOU JI Tandem Needle Loom?
Double-Sided Needling
Supports reinforcement from both sides in one machine arrangement.
Multiple Process Roles
Can be configured for pre-, main- or surface needling.
Needle-Board Options
Two- and four-board configurations are available.
Consistent Needle Depth
The one-piece aluminum needle beam is designed to maintain consistent penetration depth.
Tandem Needle Loom FAQs
It is a needle punching machine that reinforces nonwoven material from both sides and can be used for pre-needling, main needling or surface finishing.
Two-board and four-board configurations are listed in the supplied specification.
Up to 1200 r/min.
60 mm.
2.5 to 5.5 m.
Send your production requirements and receive a practical machine proposal.
Share your working width, needling stage (pre-needling, main needling or surface finishing) and project details. ZHOU JI will review the process route and equipment configuration with you.
