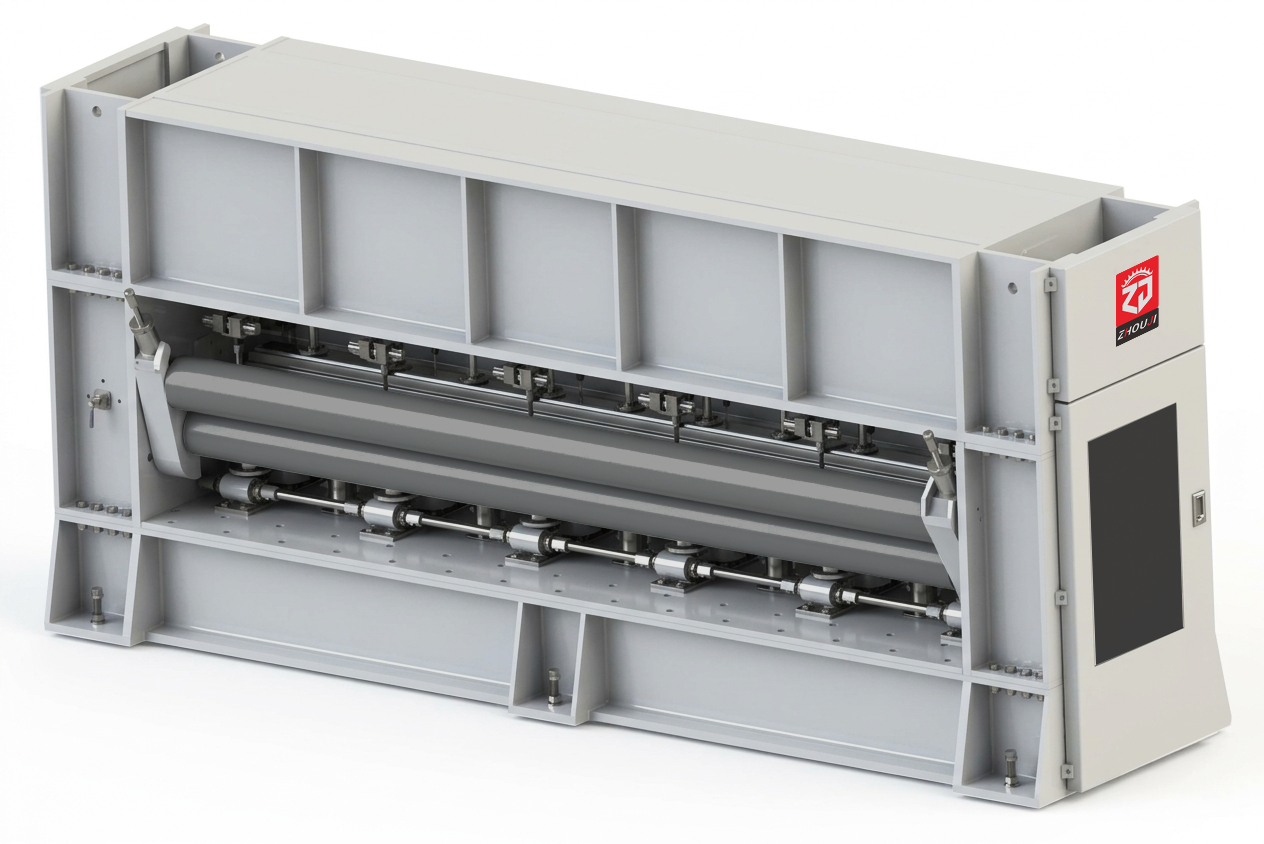

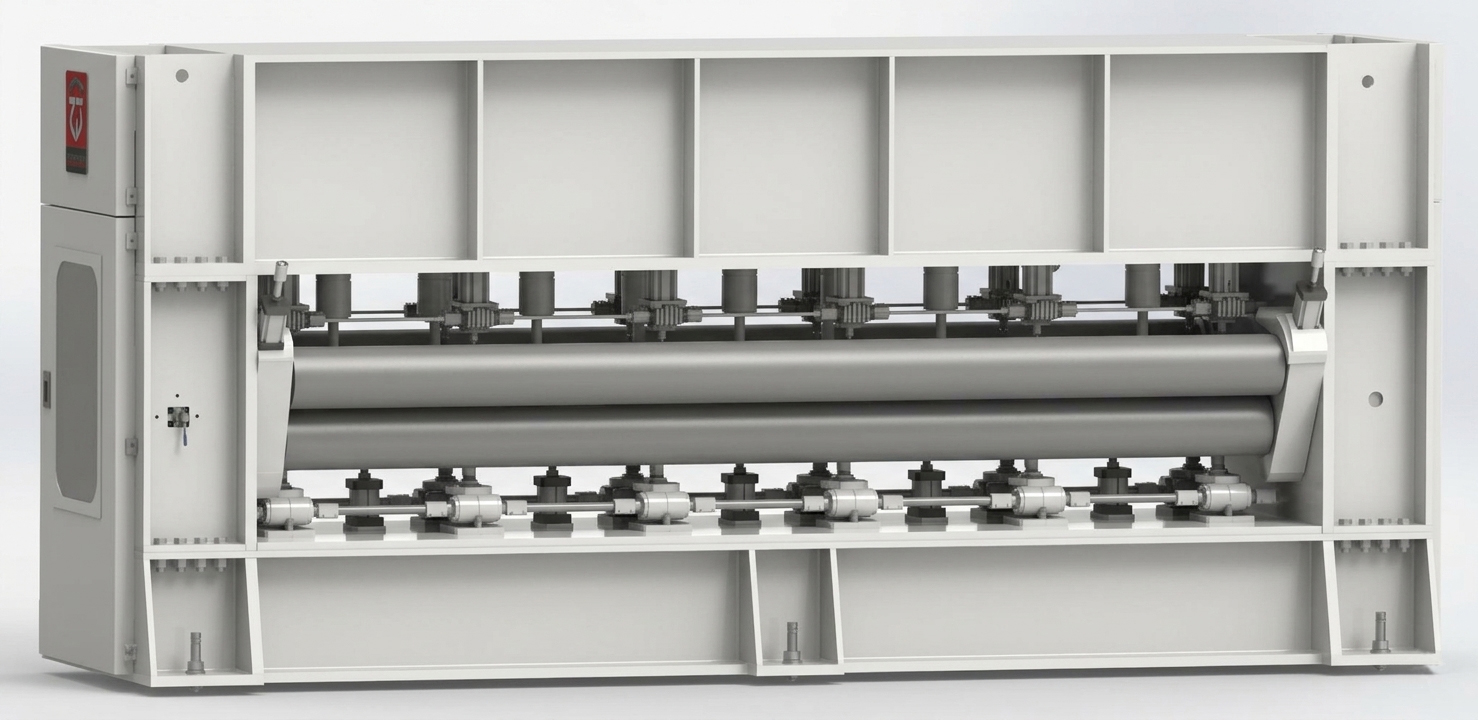

High-Speed Single Board Needle Loom for Nonwoven Production
The ZHOU JI High-Speed Single Board Needle Loom uses a single-shaft, single-needle-board structure for stable high-speed reinforcement of nonwoven fiber webs. With working widths from 2.5 to 8.5 m and needle frequency up to 1500 r/min, it can be used across a range of needle punched nonwoven applications.
High-Speed Single Board Needle Loom Overview
Single-Shaft, Single-Board
A straightforward needling structure for high-speed nonwoven reinforcement.
Wide Working Width
Specified working width extends to 8.5 m.
Flexible Needle Stroke
Needle stroke can be configured within the specified 30–60 mm range.
Key Features
Two Transmission Options
Available structures include through-shaft with eccentric wheel or crankshaft with coupling.
Large-Box Circulating Lubrication
The machine uses an integrated circulating oil lubrication system.
One-Piece Aluminum Needle Beam
The integrated needle beam helps maintain consistent needle penetration depth.
Stable Single-Board Needling
The single-shaft, single-board arrangement is designed for stable high-speed operation.
Suitable Fibers & Applications
The machine is used for formed nonwoven webs requiring high-speed needle reinforcement.
Suitable Fibers
- Final configuration depends on working width, product structure and required needle-punching intensity.
Typical Applications
- Geotextile
- Automotive nonwovens
- Filter felt
- Needle punched carpet
- General industrial needle punched nonwovens
High-Speed Single Board Needle Loom Production Process
The highlighted stage shows where the High-Speed Single Board Needle Loom is used within the nonwoven production process. The exact upstream and downstream equipment depends on the finished product and line configuration.
The formed fiber web enters the single needle-board working zone, where the single-shaft drive repeatedly moves the needle beam to mechanically reinforce the web.
Technical Specifications
Specifications are based on the supplied product document. Final machine configuration should be confirmed according to the production process and product requirements.
Single Board vs. Double Board Needle Loom
The two machines perform different functions within nonwoven production. The comparison below shows their main process differences.
Used in Complete Nonwoven Production Lines
Why Choose ZHOU JI High-Speed Single Board Needle Loom?
Wide Working Width
Specified width reaches 8.5 m.
High-Speed Needling
Specified needle frequency reaches 1500 r/min.
Flexible Stroke Range
30–60 mm stroke range supports different needling requirements.
Consistent Needle Depth
The one-piece aluminum needle beam is designed to support consistent penetration.
High-Speed Single Board Needle Loom FAQs
It is a needle punching machine that uses one needle board to mechanically reinforce a formed nonwoven web.
8.5 m according to the supplied specification.
Up to 1500 r/min.
30 to 60 mm.
The Single Board Needle Loom uses one working zone, while the Double Board Needle Loom uses two needling mechanisms and two working zones.
Send your production requirements and receive a practical machine proposal.
Share your required working width, needle frequency, target application and project details. ZHOU JI will review the process route and equipment configuration with you.
